Sylvania

6GM5 FAA

39.00 USD

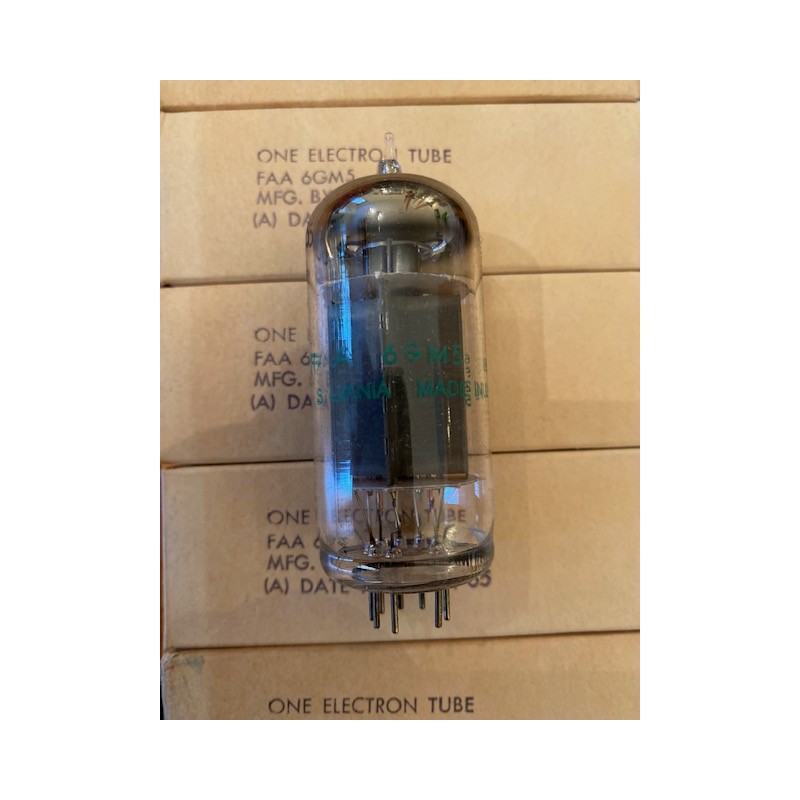

Top quality Mil. Spec. beam power amplifier tubes manufactured in the United States by Sylvania. These fine rugged fat bottle glass tubes, destined for airborne use by the Federal Aviation Administration (FAA), come with long gray plates and top round getters. They are glass etched 6GM5 U.S.A. and printed in green F.A.A. 6GM5 SYLVANIA MADE IN U.S.A. with 1965 date codes. Boxes are standard military beige printed FAA 6GM5.

Condition

Tube Matching
Tube Matching
6.00 USD by tube

WHY ?

A tube may have one, two, or three internal sections depending on the purpose of the tube; somtimes these sections are all the same, sometimes they are different. Due to manufacturing and material tolerances, there may be slight differences between the original specification and the actual tube. Tube matching tests each one of these internal sections and selects tubes, compared to original specifications at manufacture, for balanced performance and good sound.

HOW ?

All our tubes are tested by us prior to packing on our Stark, AVO, Simpson or RF Laboratories Inc. calibrated testers. On request for tube matching, tubes are matched for Mutual Conductance in Micromhos and Plate Current in Milliamps on our Amplitrex or Radioelec Duovac testers, with results printed for each  individual tube. Certain tubes difficult to test are matched for Mutual Conductance in Micromhos only on one of our regular calibrated testers. On request we can also test for Microphonics.
Quantity

Sylvania
5 Items

Data sheet

Base
9 pin miniature Noval B9A
Boite type
1/1
Emplacement
39
Fonction
Pentode
